Track Player

GPS track visualization and playback component for vehicles

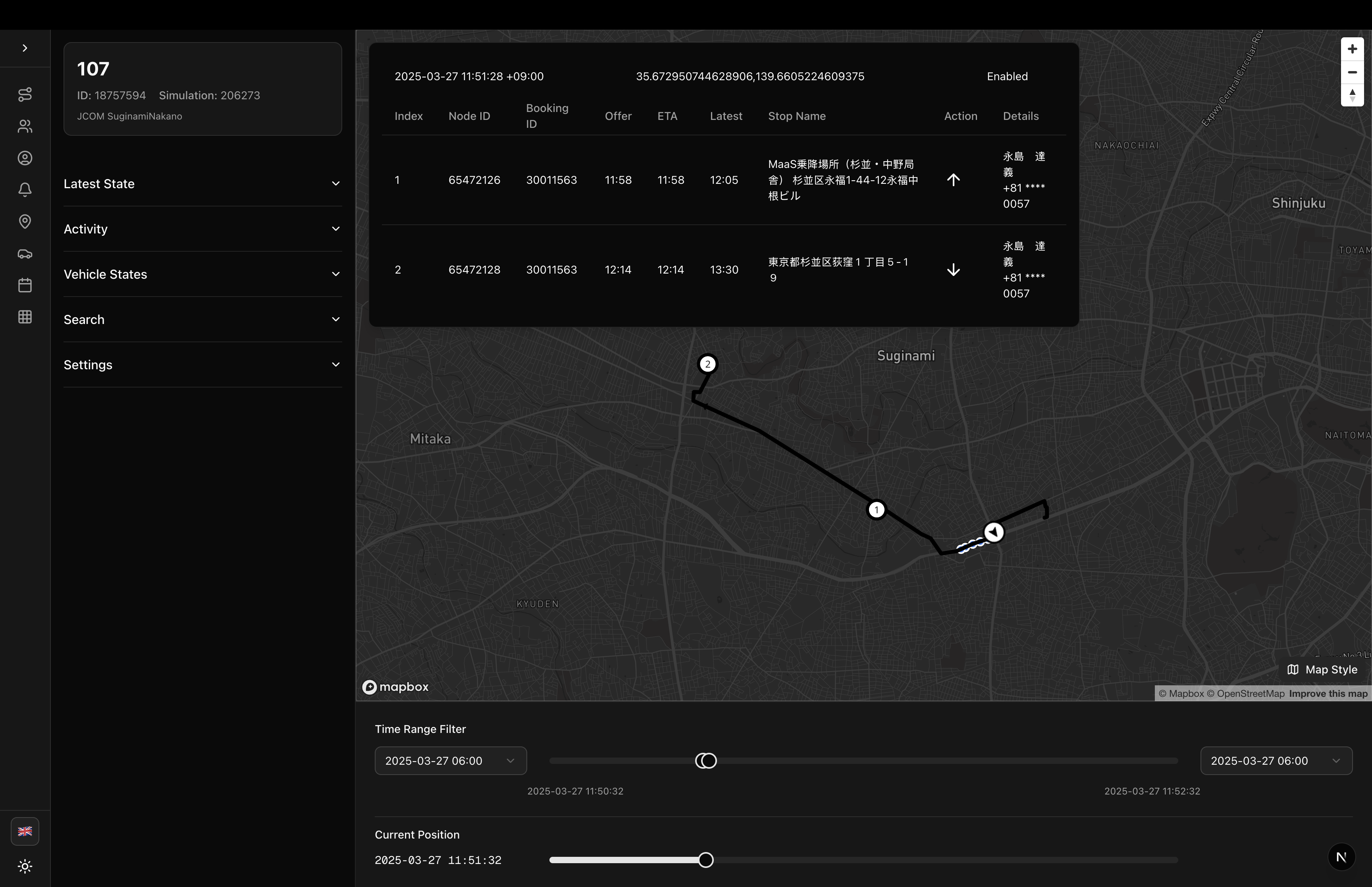

Track Player

A comprehensive component for visualizing and replaying vehicle GPS tracks with route information, node details, and timeline controls.

Track Player

Usage

import { TrackPlayer } from '@/components/sgerp/track-player';

function MyComponent() {
  return (
    <TrackPlayer
      vehicleId={123}
      mapboxToken={process.env.NEXT_PUBLIC_MAPBOX_TOKEN || ''}
    />
  );
}

Features

  • GPS Track Visualization: Display vehicle GPS points and track line on map
  • Route Polyline: Show assigned route with direction arrows and numbered stops
  • Vehicle Position Icon: Current position marker with bearing rotation
  • Timeline Controls: Scrub through time with dual sliders (range + position)
  • Map Style Selector: Switch between Light, Dark, Satellite, Street, and Outdoors
  • Vehicle States List: Browse all vehicle states with timestamp and node count
  • Node Details Panel: View assigned nodes with ETA, offers, and booking information
  • Activity Timeline: See completed node services in chronological order
  • Search: Find vehicle states by node ID, booking ID, username, phone, or transit stop
  • Timezone Support: All timestamps displayed in project timezone
  • Dynamic GPS Track: Optional follow mode that shows ±1 minute window around current position
  • Vehicle Time Range Filter: Optionally limit playback to vehicle's start/end times

Props

PropTypeRequiredDescription
vehicleIdnumberYesThe vehicle ID to display track for
mapboxTokenstringYesMapbox access token for map rendering

Layer Z-Ordering

The map displays layers in the following order (bottom to top):

  1. GPS Track Line: Blue line connecting GPS points
  2. Vehicle Route: Black polyline with direction arrows and numbered stops
  3. GPS Track Points: Blue circles at each GPS coordinate
  4. Vehicle Position: Vehicle icon that rotates based on bearing

Settings

  • Show GPS Track: Toggle GPS points and track line visibility
  • Show Vehicle Route: Toggle assigned route polyline visibility
  • GPS Track Follow: Enable dynamic time window that follows current position
  • Use Vehicle Time Range: Filter timeline to vehicle's operational hours
