SimulationDetailPage

A comprehensive simulation detail page component that provides vehicle route visualization, timeline view, booking management, and JIT shift filtering. This is a production-ready page for transportation simulation management.

Features

• Interactive Map: Display vehicle routes on Mapbox with route polylines and waypoints
• Vehicle Table: List of vehicles with booking statistics, mileage, and travel time
• Timeline View: Horizontal gantt-style timeline showing vehicle schedules
• Route Details Panel: Detailed waypoint list with times and locations
• Bookings Table: Collapsible booking list with filtering and sorting
• JIT Shift Filter: Filter vehicles and bookings by departure shifts
• State Distribution: Visual booking state statistics with filter buttons
• Map Toggle: Show/hide individual vehicle routes with eye icons
• Responsive Layout: Adaptive 40-60 split when route details are open
• Localization: Fully localized in English and Japanese

Usage

// app/simulations/[id]/page.tsx
'use client'

import { useParams } from 'next/navigation';
import { SimulationDetailPage } from '@/components/sgerp/pages/simulation-detail-page';

export default function Page() {
  const params = useParams();
  const simulationId = params.id as string;

  return <SimulationDetailPage simulationId={simulationId} />;
}

Props

Screenshots

Map with All Routes

Map with Single Route

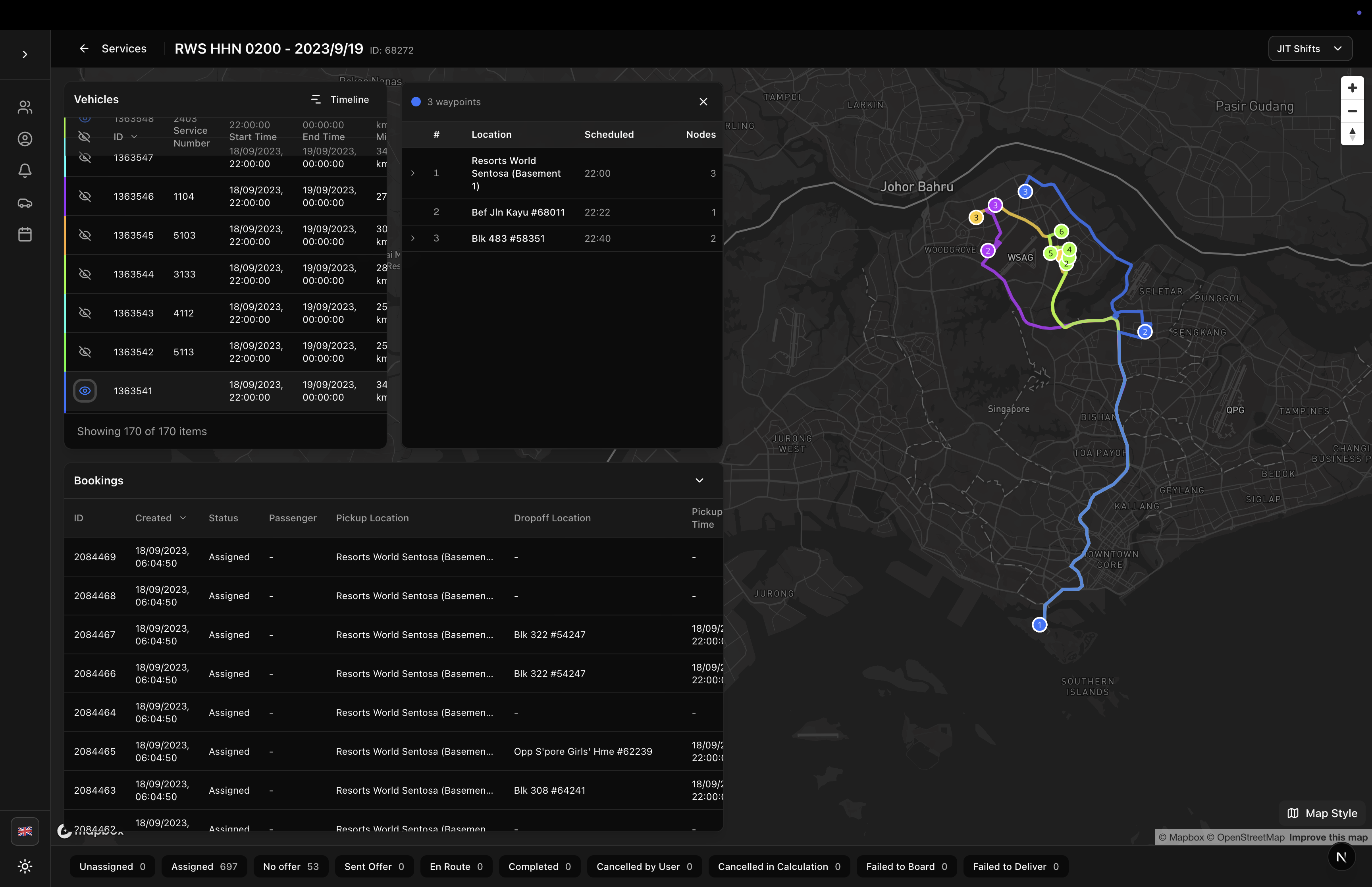

Map with Multiple Routes

Timeline View

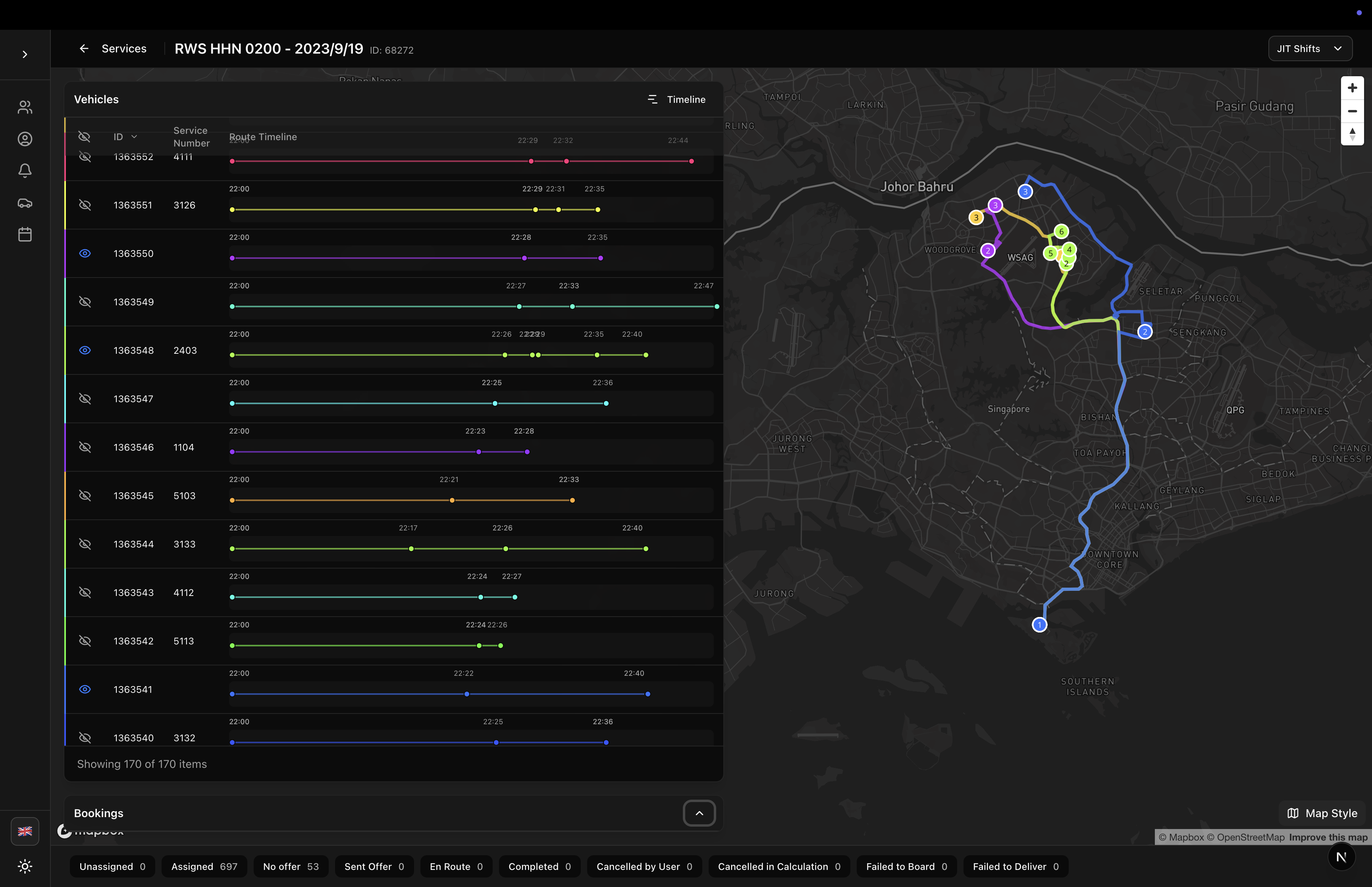

Timeline Full Height

Features in Detail

Vehicle Route Visualization

• All Routes Toggle: Button to show/hide all routes at once
• Individual Route Toggle: Eye icon on each vehicle row to show/hide specific routes
• Route Details Panel: Click a vehicle row to open detailed waypoint list (40-60 split)
• Waypoint Navigation: Click waypoints to pan map to that location
• Route Polylines: OSRM-calculated routes displayed as blue lines
• Mileage & Travel Time: Calculated from route legs and displayed in columns

Timeline Mode

• Horizontal Gantt: Shows vehicle schedules as horizontal bars
• Time Range: Auto-calculated from all scheduled nodes
• Node Visualization: Pickup (green) and dropoff (red) markers on timeline
• Full Height: Collapse bookings table to maximize timeline view
• Click to Pan: Click timeline nodes to pan map to location

Booking Management

• Collapsible Table: Chevron button to collapse/expand bookings
• State Filtering: Click state badges in footer to filter bookings
• JIT Shift Filtering: Dropdown to filter by departure shift
• Driver & Vehicle Info: Shows assigned vehicle and driver for each booking
• Passenger Info: Displays passenger username from booking data
• Sortable Columns: Sort by ID, date, status, pickup time, etc.

JIT Shift Support

• Shift Dropdown: Select departure shift to filter vehicles and bookings
• Shift Statistics: Shows booking count, vehicles allocated, and assigned
• Home-to-Work / Work-to-Home: Supports both shift types
• Time Matching: Matches bookings by min_pickup_time or max_dropoff_time

State Distribution

• Visual Statistics: Booking counts by state (unassigned, assigned, enroute, etc.)
• Click to Filter: Click state badges to filter booking table
• Combined States: "Unassigned" combines NEW, QUEUED, PREPARED, CALCULATION
• Real-time Updates: Updates as bookings change state

Layout Structure

Header

• Back Button: Navigate to services list
• Simulation Info: Name and ID
• Loading Indicator: Spinner when fetching data
• JIT Shift Selector: Dropdown for shift filtering (if available)

Map Area (Full Screen)

• Vehicle Route Map: Mapbox GL JS with routes and waypoints
• Left Overlay: Tables and panels (50% width)
  • Vehicles Section: Table with booking stats (expandable)
    • Toggle between regular and timeline mode
    • Route details panel appears when vehicle selected
  • Bookings Section: Collapsible table
    • Expand/collapse with chevron button
    • When collapsed, vehicles take 100% height

Footer

• State Distribution: Clickable badges showing booking counts by state
• Filter Indicator: Selected states are highlighted

Data Flow

The component uses the simulation logic utilities from sgerplib/sgerp/simulation-logic:

1. Fetch Data

import { fetchSimulationData } from '@/sgerplib/sgerp/simulation-logic';

const { bookings, nodes } = await fetchSimulationData(api, simulationId);

2. Build References

import { attachReferences } from '@/sgerplib/sgerp/simulation-logic';

attachReferences(bookings, vehicles, nodes);

3. Generate Routes

import { createVehicleRoutesFromNodes } from '@/sgerplib/sgerp/utils/routeUtils';

const routes = createVehicleRoutesFromNodes(nodes, vehicleIds);

4. Calculate OSRM Routes

Uses RoutingEngine to calculate polylines from waypoints for map display.

Vehicle Table Columns

Regular Mode

• Map Toggle: Eye icon to show/hide route
• ID: Vehicle ID
• Service Number: Vehicle identifier
• Start Time: Shift start time
• End Time: Shift end time
• Mileage: Total route distance in km
• Travel Time: Total route duration (hours + minutes)
• Bookings Total: Total assigned bookings
• Bookings Assigned: Bookings in ASSIGNED state
• Bookings Enroute: Bookings in ENROUTE state
• Bookings Completed: Bookings in COMPLETED state

Timeline Mode

• Map Toggle: Eye icon to show/hide route
• ID: Vehicle ID
• Service Number: Vehicle identifier
• Route Timeline: Horizontal gantt chart with pickup/dropoff nodes

Bookings Table Columns

• ID: Booking ID
• Created: Booking creation time
• Status: Booking state (localized)
• Passenger: Username from booking data
• Pickup Location: Pickup location name (truncated)
• Dropoff Location: Dropoff location name (truncated)
• Pickup Time: Scheduled pickup time from nodes
• Vehicle: Assigned vehicle service number
• Driver: Driver first and last name
• Demand: Passenger count and special requirements

Localization

Uses localization keys from sgerplib/locales/:

Page Keys

• ptapp.simulation.vehicles - Vehicles section header
• ptapp.simulation.bookings - Bookings section header
• ptapp.nav.services - Back button text
• common.timeline - Timeline button text
• common.loading - Loading indicator
• common.no_data - Empty state
• common.no_route - No route available

Column Keys

• column.id, column.service_number, column.start_time, etc.
• column.mileage, column.travel_time
• column.bookings_total, column.bookings_assigned, etc.
• column.pickup_location, column.dropoff_location
• column.vehicle, column.driver, column.passenger

State Keys

• booking_state.new, booking_state.assigned, etc.
• booking_state.unassigned - Combined unassigned states

Styling

The component uses:

• Tailwind CSS for all styling
• Backdrop Blur: Semi-transparent panels over map
• Flexbox Layout: Responsive splits and overflow handling
• Border Accents: Vehicle color on left border of rows
• Sticky Headers: Table headers stay visible when scrolling

Required CSS

• Tailwind CSS configured
• Mapbox GL JS CSS imported
• shadcn/ui button and select components

Performance Optimizations

• Client-Side Only Tables: Tables don't make API calls, only render collection data
• Only Fields: Fetches only required fields from API
• Memoized Calculations: Statistics and filters use useMemo
• Reference Building: Efficient index maps for O(1) lookups
• Lazy Route Calculation: OSRM routes calculated in parallel

Dependencies

Required packages:

• next (for routing)
• react (18+)
• mapbox-gl (for map display)
• lucide-react (for icons)
• sgerp-frontend-lib (collections, hooks, utilities)

Components used:

• VehicleTable from sgerp-frontend-lib
• VehicleRouteMap from sgerp-frontend-lib
• RouteDetailsTable from sgerp-frontend-lib
• InlineTimeline from sgerp-frontend-lib
• JitShiftDropdown from sgerp-frontend-lib
• DemandCell and DemandProvider from sgerp-frontend-lib
• @/components/ui/button, @/components/ui/select (shadcn/ui)

Related Components

• VehicleTable - Reusable vehicle table
• VehicleRouteMap - Map component
• ServicesPage - Services list page
• TemplatesPage - Templates list page

Notes

• SGERP Context: Requires SGERPProvider wrapper in app layout
• Mapbox Token: Requires Mapbox access token configured
• Driver Data: Driver names attached separately (not included in initial fetch)
• Mobile Support: Best viewed on desktop/tablet due to complexity
• State Persistence: Map view and selected routes don't persist on navigation
